Titanium High Speed Handpiece

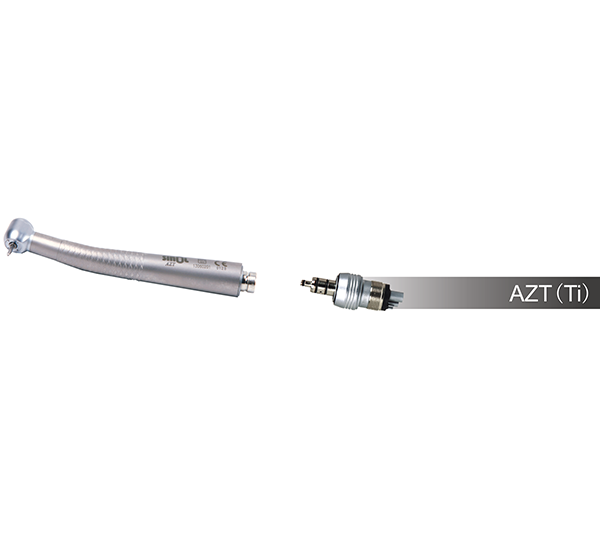

Titanium High Speed Handpiece(AZT)

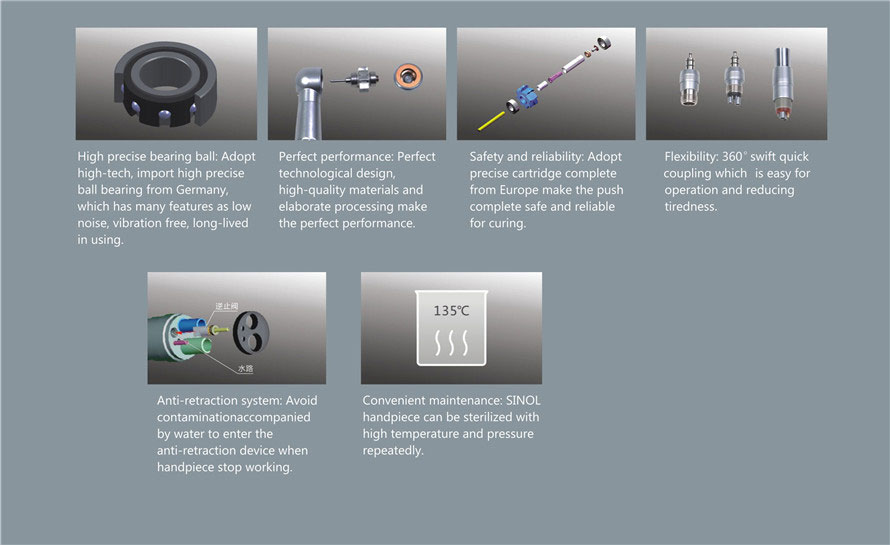

  • Product Introduction
  • Product Features
  • Configuration
  • Specification:
    1 The head size: standard head, the size isφ11.2×13.6, the weight is 78g with quick coupling.
    2 Quick coupling: 2 holes and 4 holes available. Anti-retraction system can avoid cross infection.
    3 Imported German ball bearing.
    4 Working pressure: 4 holes 025-0.27 MPa, 2 holes 0.2-0.22 MPa.
    5 Air consumption:30-36L/min.
    6 Radial direction≤0.01mm.
    7 Cooling type: 4 water spray, the best cooling effect, if the water pressure is above 0.1Mpa, it can become the fog, especially for the low water pressure area.
      ( The best cooling condition: water pressure: 0.2 MPa,the fog air pressure:0.2-0.4 MPa)
    8 Rotation speed: 340,000-390,000rpm.
    9 Cutting force: radial direction≥0.9Kg, axial direction≥2.0Kg.
    10 Noise: ≤65dB
    11 Torque: 0.10~0.11N.cm
    12 When the water pressure is 0.2 MPa, the cooling water flow ≥50mL/min.
    13 It can be sterilized under 135℃ high temperature and high pressure steam.
