Titanium High Speed Handpiece
- Product Introduction
- Product Features
- Configuration
-

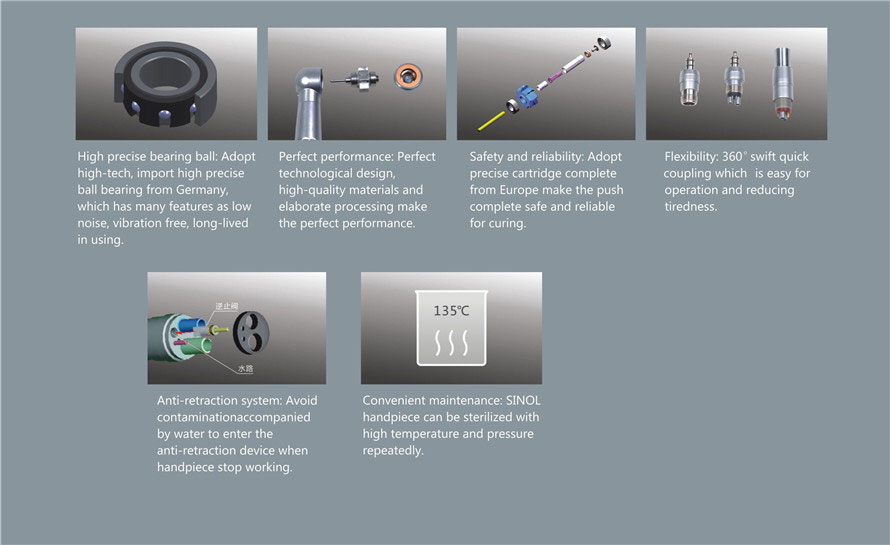

- Main features:
1. Imported German ceramic ball bearing.
2. The titanium surface is more durable with good biocompatibility.
3. The slip resistance diamond-shaped groove makes doctor feel safe and comfortable in the process of treatment.
4. Single point water spray cooling, which can remove the hematoma.
5. New turbine and head design remove the hematoma during treatment because of spay in the front.
6. 45°contra angle handpiece with powerful radial direction cutting force allows doctors to finish cutting block teeth efficiently. The torque can reach 0.12～0.13N.cm.
7. The reduceness of bur radial direction swing quantity ensures doctors’ precise treatment.
8. Press button design avoids ball bearing being retreated.
9. Quick coupling can be rotated 360°freely. Anti-retraction system can avoid contaminated water backflowing into water pipe provided for handpiece. Technical parameters of ADZ-4 are as below:
Head sizes: Torque type
Maximum diameter（mm）: Φ12.2
Driving air pressure(MPa): 0.26±0.01
Free-running speed ( rpm): ＞300000
Water pressure: 0.2~0.4
Connection: 4-hole
Light function: None
Cooling form: Single water
Structural style：Quick coupling
Technical parameters of BDZ-4 are as below:
Head sizes: Torque type
Maximum diameter（mm）: Φ12.2
Driving air pressure(MPa): 0.26±0.01
Free-running speed ( rpm): ＞300000
Water pressure: 0.2~0.4
Connection: 4-hole
Light function: None
Cooling form: Single water
Structural style：Direct connection
