Series A High Speed Handpiece

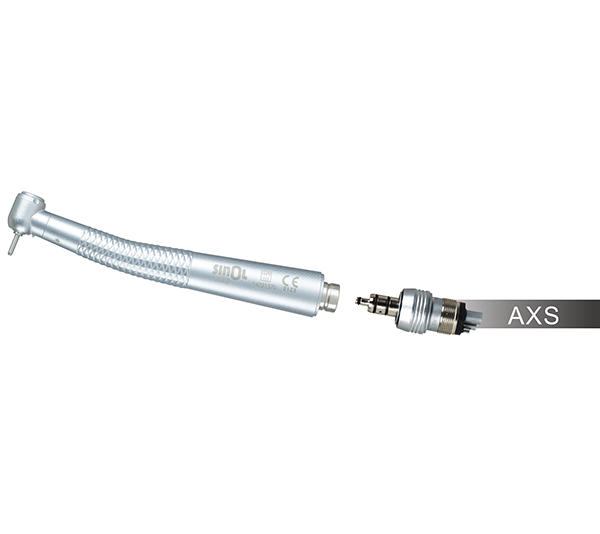

Series A high speed handpiece(AXS)

  • Product Introduction
  • Product Features
  • Configuration
  • SINOL AXS handpiece has attracted more and more concern for its small diameter, low height and big torque , which is the essential product for children dental chair.

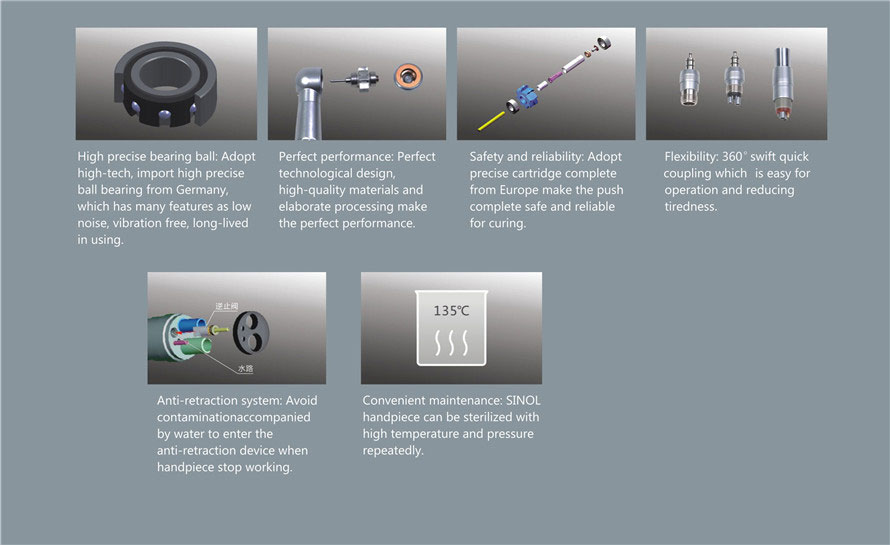

    Technical parameter and features:
    1 The size of head: φ10.2×13.1, imported German ball bearing.
    2 Quick coupling, anti-retraction system, avoid cross infection.
    3 Working pressure:4 holes  0.25MPa, gas consumption: 30-36L/min.
    4 Cartridge unbalance ≤180μg,radial runout ≤0.01mm
    5 Cooling: single point spray coolingh, when the water pressure is 0.2MPa, the cooling water quantity >55mL/min.
    6 Rotation speed: 350,000-410,000 rpm.
    7 Cutting force: radial direction≥0.7Kg,axial direction≥2.0Kg.
    8 Noise≤65dB.
    9 Torque: 0.08~0.09N.cm.
    10 It is recommended to be sterilized under 135℃ high temperature and high pressure steam.
